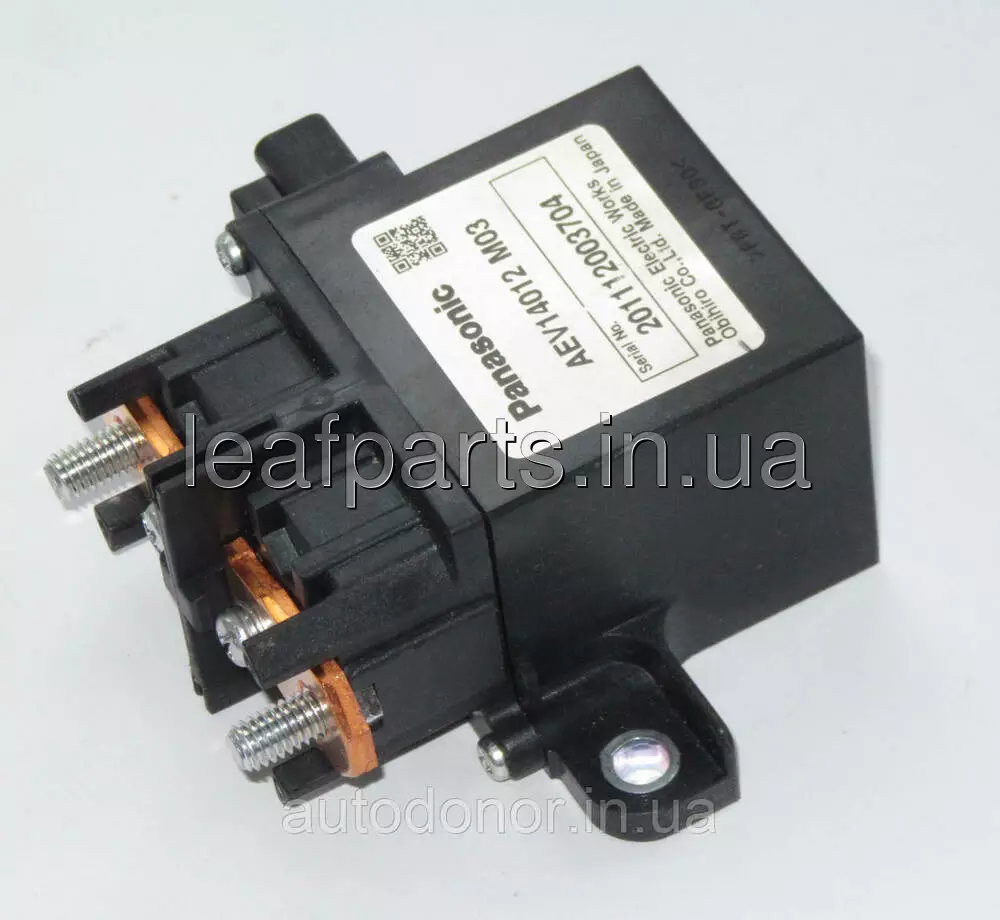

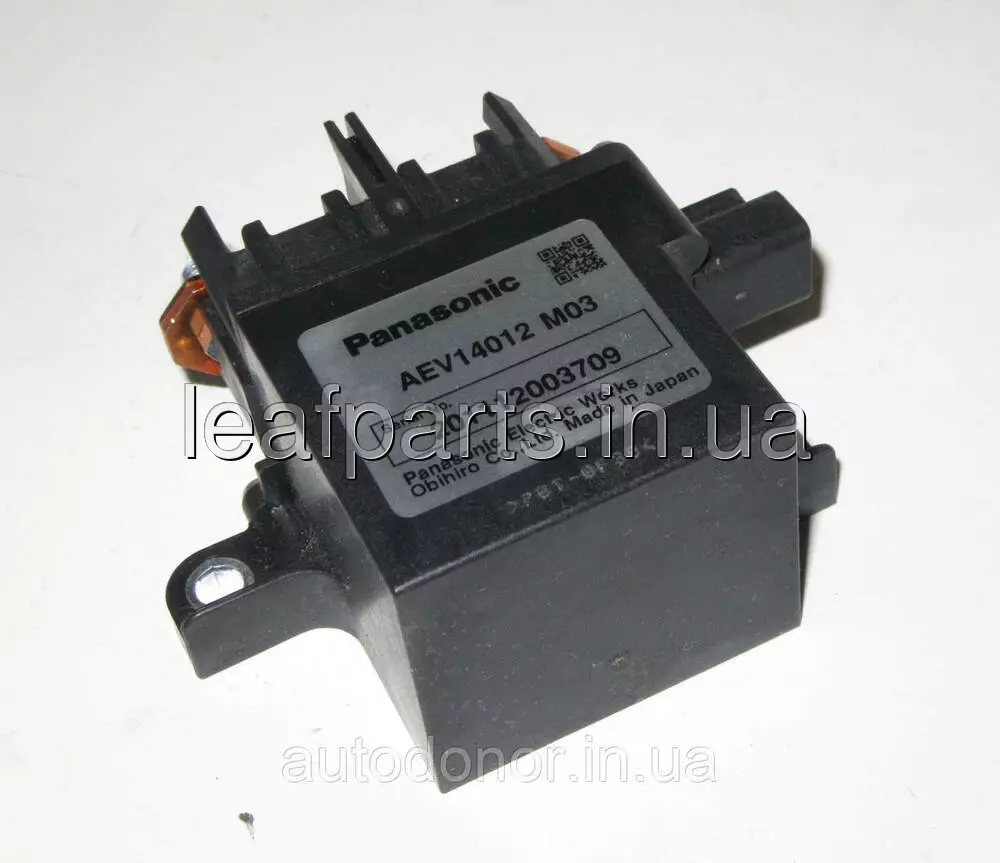

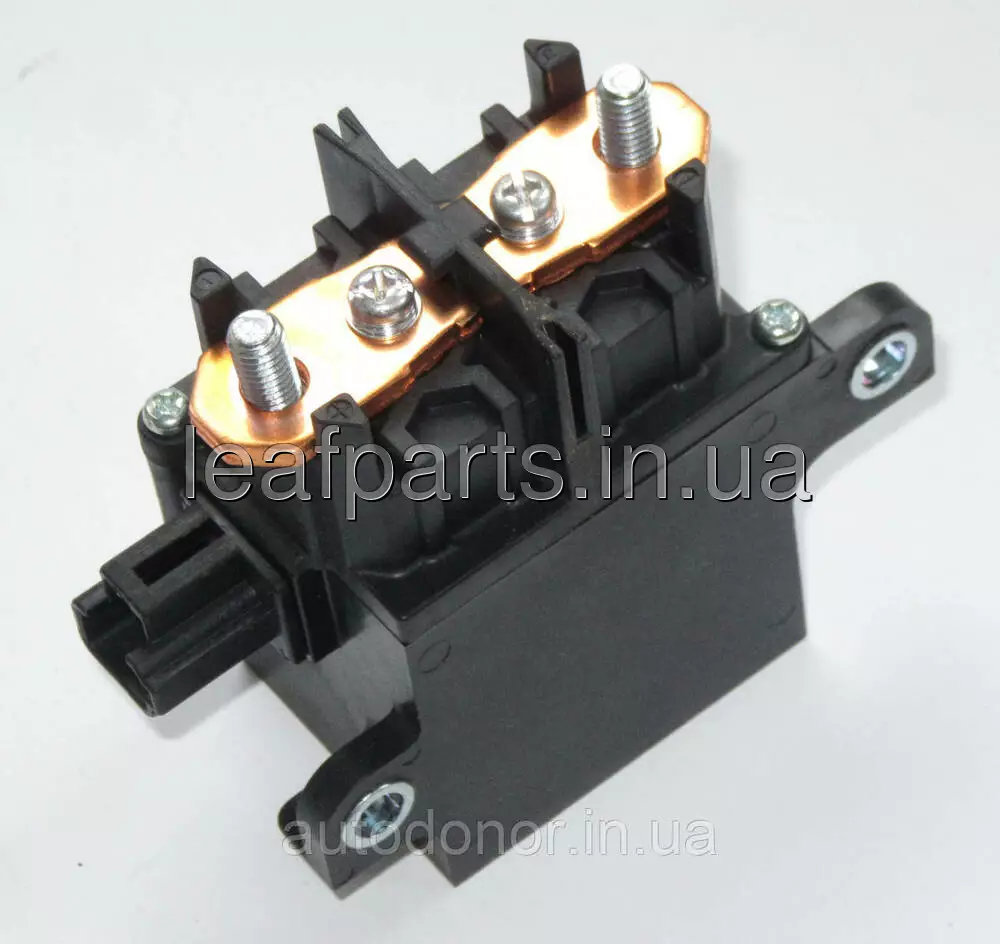

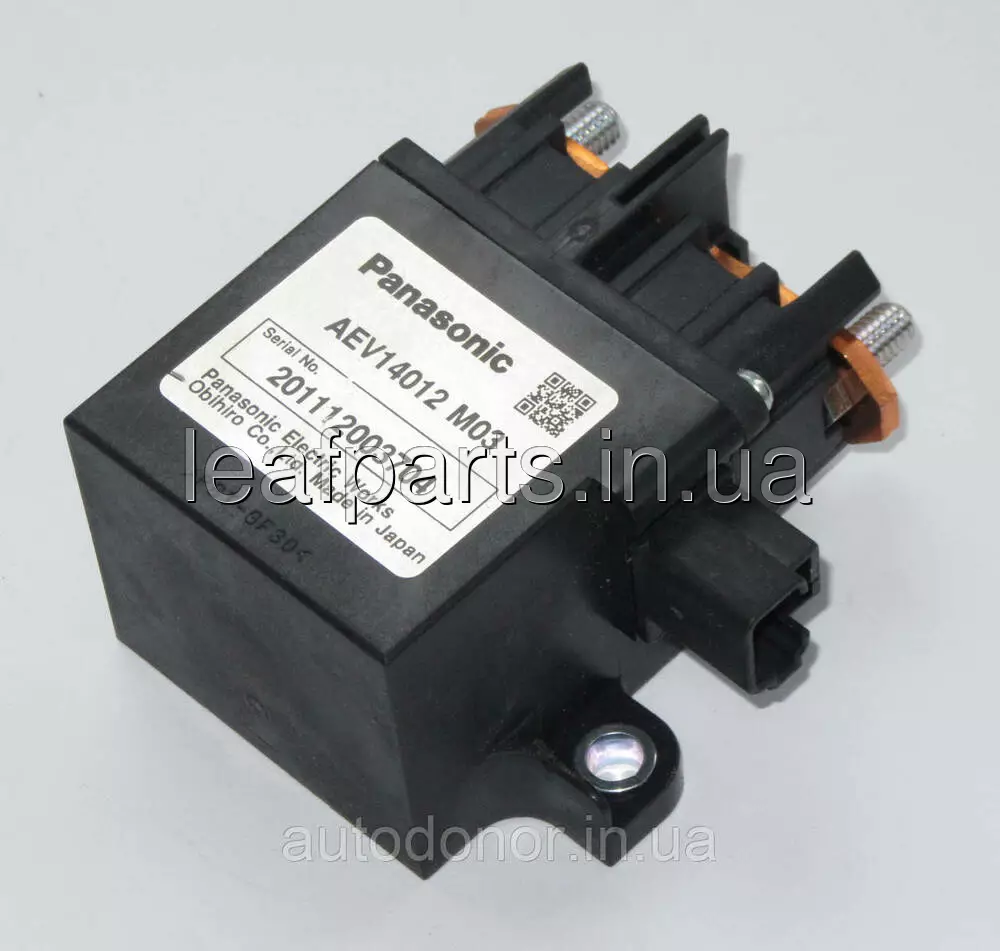

Реле перетворювача (DC/DC Junction Box) на Ніссан Ліф в кузові ЗетЕ0 з 2011 по 2012 рік.

Конструктивні номери - AEV14012 M03, AEV14012 M03, 201112003709, 201112003704, 201112003560, 201112003713.

Physical

Mount Flanges

Number of Pins 4

Weight 400 g

Technical

Coil Current 353 mA

Coil Resistance 34 Ω

Coil Voltage (DC) 12 V

Contact Current Rating 120 A

Max Current Rating 120 A

Max Operating Temperature 80 °C

Max Voltage Rating (DC) 400 V

Min Operating Temperature -40 °C

Operate Time 50 ms

Termination Screw

Throw Configuration SPST

Dimensions

Depth 40 mm

Height 80 mm

Length 82.75 mm

Compliance

RoHS Compliant
